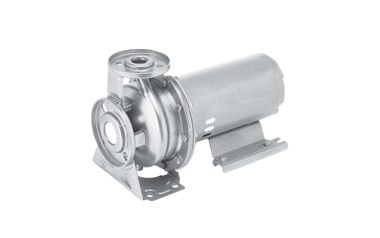

Bombas Centrífugas FC Webtrol

Quality parts at an exceptional value
Bombas Centrífugas FC Webtrol
DESCRIÇÃO DO PRODUTO

As Centrífugas Webtrol Pro-Stainless Steel Series são projetadas para desempenho confiável e serviço de serviço contínuo robusto. Quando você precisa de uma bomba resistente a corrosão e erosão, a linha de bombas centrífugas Pro-Stainless Steel da Webtrol é a sua escolha lógica. Estas bombas são garantidamente resistentes, projetadas para o profissional e construídas para desempenho e valor duradouros.

[custom-specifications]

Número do Modelo

Flange de Sucção (inches)

Flange de descarga (inches)

Bomba Dimensões (inches)

D

P1

K1

D1

S1

D

P2

K2

D2

S2

A

E

H

H1

H2

M1

M2

N1

N2

S

FC3230

2

3 3/4

4 15/16

6 1/2

11/16

1 1/4

2 1/2

3 1/2

5 1/2

5/8

3 1/8

8 3/8

9 15/16

4 7/16

5 1/2

2 3/4

4 1/2

5 1/2

7 1/2

9/16

FC32A50

2

3 3/4

4 15/16

6 1/2

11/16

1 1/4

2 1/2

3 1/2

5 1/2

5/8

3 1/8

10

11 1/2

5 3/16

6 5/16

2 3/4

4 5/8

7 1/2

9 7/16

9/16

FC32B50

2

3 3/4

4 15/16

6 1/2

11/16

1 1/4

2 1/2

3 1/2

5 1/2

5/8

3 1/8

10

11 1/2

5 3/16

6 5/16

2 3/4

4 5/8

7 1/2

9 7/16

9/16

FC3275

2

3 3/4

4 15/16

6 1/2

11/16

1 1/4

2 1/2

3 1/2

5 1/2

5/8

3 1/8

11 9/16

13 3/8

6 5/16

7 1/16

2 3/4

4 11/16

7 1/2

9 7/16

9/16

FC32100

2

3 3/4

4 15/16

6 1/2

11/16

1 1/4

2 1/2

3 1/2

5 1/2

5/8

3 1/8

11 9/16

13 3/8

6 5/16

7 1/16

2 3/4

4 11/16

7 1/2

9 7/16

9/16

FC40A50

2 1/2

4 9/16

5 11/16

7 5/16

11/16

1 1/2

2 7/8

3 7/8

5 7/8

5/8

3 1/8

8 3/8

9 15/16

4 7/16

5 1/2

2 3/4

4 1/2

6 5/16

8 1/4

9/16

FC40B50

2 1/2

4 9/16

5 11/16

7 5/16

11/16

1 1/2

2 7/8

3 7/8

5 7/8

5/8

3 1/8

8 3/8

9 15/16

4 7/16

5 1/2

2 3/4

4 1/2

6 5/16

8 1/4

9/16

FC4075

2 1/2

4 9/16

5 11/16

7 5/16

11/16

1 1/2

2 7/8

3 7/8

5 7/8

5/8

3 1/8

10

11 1/2

5 3/16

6 5/16

2 3/4

4 5/8

7 1/2

9 7/16

9/16

FC40100

2 1/2

4 9/16

5 11/16

7 5/16

11/16

1 1/2

2 7/8

3 7/8

5 7/8

5/8

3 1/8

10

11 1/2

5 3/16

6 5/16

2 3/4

4 5/8

7 1/2

9 7/16

9/16

FC40A150-3

2 1/2

4 9/16

5 11/16

7 5/16

11/16

1 1/2

2 7/8

3 7/8

5 7/8

5/8

3 15/16

11 9/16

13 3/8

6 5/16

7 1/16

2 3/4

4 1/2

8 3/8

10 7/16

9/16

FC40B150-3

2 1/2

4 9/16

5 11/16

7 5/16

11/16

1 1/2

2 7/8

3 7/8

5 7/8

5/8

3 15/16

11 9/16

13 3/8

6 5/16

7 1/16

2 3/4

4 1/2

8 3/8

10 7/16

9/16

FC5075

2 1/2

4 9/16

5 11/16

7 5/16

11/16

2

3 3/4

4 15/16

6 1/2

11/16

3 15/16

10

11 1/2

5 3/16

6 5/16

2 3/4

4 1/2

7 1/2

9 7/16

9/16

FC501100

2 1/2

4 9/16

5 11/16

7 5/16

11/16

2

3 3/4

4 15/16

6 1/2

11/16

3 15/16

10

11 1/2

5 3/16

6 5/16

2 3/4

4 1/2

7 1/2

9 7/16

9/16

FC50100

2 1/2

4 9/16

5 11/16

7 5/16

11/16

2

3 3/4

4 15/16

6 1/2

11/16

3 15/16

11 11/16

13 3/8

6 5/16

7 1/16

2 3/4

4 1/2

8 3/8

10 7/16

9/16

FC50150-3

2 1/2

4 9/16

5 11/16

7 5/16

11/16

2

3 3/4

4 15/16

6 1/2

11/16

3 15/16

11 11/16

13 3/8

6 5/16

7 1/16

2 3/4

4 1/2

8 3/8

10 7/16

9/16

Número do Modelo

NEMA Quadro

Dimensões do Motor

b

e1

f

g

h1

h2

h3

p

S3

F

FC3230

145JM

5

15/16

3 1/2

5 15/16

5 1/2

6 1/2

1

6 9/16

11/32

18 15/16

FC3230

182JM

4 1/2

-1/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

19 3/16

FC32A50

182JM

4 1/2

11/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

19 3/16

FC32A50

184JM

5 1/2

11/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

20 5/8

FC32B50

182JM

4 1/2

11/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

19 3/16

FC32B50

184JM

5 1/2

11/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

20 5/8

FC3275

184JM

5 1/2

1 13/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

22 1/8

FC3275

213JM

5 1/2

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

20 3/4

FC32100

213JM

5 1/2

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

20 3/4

FC32100

215JM

7

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

21 7/8

FC40A50

182JM

4 1/2

-1/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

19 3/16

FC40A50

184JM

5 1/2

-1/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

20 3/4

FC40B50

182JM

4 1/2

-1/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

19 3/16

FC40B50

184JM

5 1/2

-1/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

20 3/4

FC4075

184JM

5 1/2

11/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

22 1/8

FC4075

213JM

5 1/2

-1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

20 3/4

FC40100

213JM

5 1/2

-1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

20 3/4

FC40100

215JM

7

-1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

21 7/8

FC40A150-3

215JM

7

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

22 11/16

FC40B150-3

215JM

7

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

22 11/16

FC5075

184JM

5 1/2

11/16

4 1/2

6 1/2

7 1/2

8 1/2

1

7 3/16

13/32

22 15/16

FC5075

213JM

5 1/2

-1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

21 9/16

FC501100

213JM

5 1/2

-1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

21 9/16

FC501100

215JM

7

-1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

22 11/16

FC50100

213JM

5 1/2

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

21 9/16

FC50100

215JM

7

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

22 11/16

FC50150-3

215JM

7

1 1/16

5 1/4

8

8 1/2

9 1/2

1

8 3/16

13/32

22 11/16

Número do Modelo

Flange de Sucção (inches)

Flange de descarga (inches)

Bomba Dimensões (inches)

D

P1

K1

D1

S1

D

P2

K2

D2

S2

A

E

H

H1

H2

M1

M2

N1

N2

S

FC6575

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

10

13 3/8

6 5/16

7 1/16

3 3/4

5 1/2

8 3/8

11

9/16

FC651100

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

10

13 3/8

6 5/16

7 1/16

3 3/4

5 1/2

8 3/8

11

9/16

FC651150-3

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

11 5/8

14 3/16

6 5/16

7 7/8

3 3/4

5 1/2

8 3/8

11

9/16

Número do Modelo

NEMA Frame

Dimensões do Motor

b

e1

f

g

h1

h2

h3

p

S3

F

FC6575

213JM

9/16

1 1/16

5 1/4

9 9/16

8 1/2

10 1/4

1 3/4

16 9/16

1/2

23 3/16

FC651100

215JM

9/16

1 1/16

5 1/4

9 9/16

8 1/2

10 1/4

1 3/4

16 9/16

1/2

23 3/16

FC651150-3

215JM

9/16

1 1/16

5 1/4

9 9/16

8 1/2

10 1/4

1 3/4

16 9/16

1/2

23 3/16

Número do Modelo

Flange de Sucção (inches)

Flange de descarga (inches)

Bomba Dimensões (inches)

D

P1

K1

D1

S1

D

P2

K2

D2

S2

A

E

H

H1

H2

M1

M2

N1

N2

S

FC652200-3T

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

11 5/8

14 3/16

6 5/16

7 7/8

3 3/4

5 1/2

8 3/8

11

9/16

FC65200-3T

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

11 5/8

15 15/16

7 1/16

8 7/8

3 3/4

5 1/2

9 13/16

12 5/8

9/16

FC653250-3T

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

11 5/8

14 7/8

6 5/16

7 7/8

3 3/4

4 15/16

8 3/8

11 1/8

9/16

FC651250-3T

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

11 5/8

15 15/16

7 1/16

8 7/8

3 3/4

5 1/2

9 13/16

12 5/8

9/16

FC652300-3T

3 3/16

5 1/4

6

7 7/8

11/16

2 9/16

4 1/2

5 11/16

7 5/16

11/16

3 15/16

11 5/8

15 15/16

7 1/16

8 7/8

3 3/4

5 1/2

9 13/16

12 5/8

9/16

Número do Modelo

NEMA
Quadro

Dimensões do Motor

b

f

g

h1

h2

h3

p

S3

F

FC652200-3T

256TC

10

6 1/4

11 5/8

10

12 3/8

2 3/8

13 13/16

17/32

32 3/8

FC65200-3T

256TC

10

6 1/4

13 9/16

10

12 3/8

2 3/8

25 13/16

17/32

32 3/8

FC653250-3T

284TSC

11

7

12 13/16

11

12 3/4

-

13 7/8

17/32

36

FC651250-3T

284TSC

11

7

13

11

12 15/16

1 15/16

13 7/8

17/32

36

FC652300-3T

286TSC

11

7

13

11

12 15/16

1 15/16

13 7/8

17/32

36

[/custom-specifications][custom-features]

  • Close Coupled design economiza espaço e simplifica a manutenção e a instalação.
  • A descarga da linha central garante a máxima resistência ao desalinhamento e à distorção causada pelas conexões da tubulação.
  • O projeto Back Pullout permite a manutenção do rotor e do selo mecânico sem a remoção da tubulação de sucção / descarga.
  • Alta eficiência operacional em uma ampla gama de capacidades que reduz o custo operacional.
  • Os selos mecânicos e os o-rings são de materiais de alta qualidade para os requisitos padrão de bombeamento. Opcional de alta temperatura e resistente a produtos químicos estão disponíveis.
Atuação
  • Capacidades para 600 GPM
  • Pressões até 120 PSI

Modelos FC

Tamanho: Sucção FC32. . . . . . . . . . .2 ”ANSI
         150 lb. ANSI FC40. . . . . . . . . . 2 ANSI 1/2 ”
                            FC50. . . . . . . . . . 2 ANSI 1/2 ”
                            FC65. . . . . . . . . . .3 "ANSI
             Descarga FC32. . . . . . . . . . 0,1 ANSI de 1/4 ”
         150 lb. ANSI FC40. . . . . . . . . . 0,1 ANSI 1/2 ”
                            FC50. . . . . . . . . . .2 ”ANSI
                            FC65. . . . . . . . . . 2 ANSI 1/2 ”
Alcance da HP: 1 HP a 2 HP - 1750 RPM
                  3 HP a 30 HP - 3450 RPM
Desempenho: Capacidade - 13 GPM a 600 GPM
                       Descarga - 6 PSI a 120 PSI
                       Líquido - água limpa
                       Temp. Líquido - 212 ° F (opção de 250 ° F)
                       Max. Pressão de trabalho - 230 PSI
Materiais: Invólucro - Inox 304L
                 Rotor - Inox 304L
                 Eixo - Inox
                 Selo Mecânico - Tipo 21
Motor: NEMA JM, TC, quadro TSC / 60 Hz

[/custom-features] [custom-usage]

Serviços Típicos
  • Aumento de pressão
  • Sistemas de Água Ultrapura
  • Sistemas Deionizados
  • Sistemas de Distribuição
  • Assistência Farmacêutica
  • Recuperação de Água
  • Sprinkler E Irrigação
  • Aplicações gerais de bombas
  • Processamento de bebidas
  • Peças Wahsers
  • Torres de refrigeração
  • Jockey Pump
  • Transferência Líquida
  • Trocadores de calor
  • Lava-jato
  • Sistemas de Pulverização
  • Purificadores
  • Aves de capoeira

[/custom-usage] [custom-documents]

Bombas Centrífugas FC Webtrol Ficha de Dados [/custom-documents]
Modelos
CARACTERÍSTICAS
APLICAÇÕES
DOCUMENTOS
VÍDEOS
COMENTÁRIOS
(1 Comentários) Escrever uma resenha
  • 5
    Entrega rápida

    Posted by Liz D. on Apr 24th 2020

    Entrega rápida e ótima qualidade!

Related Products
Productos Relacionados
